S-101M Minamisawa Daisuke Signature Model
This is a cost-performance model based on the specifications of the S-131M model used by Daisuke Minamisawa, a leading figure in the fingerpicking world.
The basic configuration of the instrument is the same, but it is a handmade model with high degree of perfection as an instrument.
Price: open
| Body Profile | Grand Auditorium |
|---|---|
| Cutaway | Venetian |
| Top | Solid Sitka Spruce |
| Top Brace Pattern | XX-brace |
| Back | Solid Indian Rosewood |
| Sides | Solid Indian Rosewood |
| Back Brace Pattern | X-brace |
| Fingerboard | Ebony |
| Nut Width | 45mm |
| Neck | Mahogany |
| Head Inlay | None |
| Tuners | GOTOH/SG381-B01 GG |
| Position Inlays | Dot |
| Scale Length | 652mm |
| Strings | Jim Dunlop/DAP1254 |
| Nut | Graph Tech/TUSQ Offset |
| Saddle | Graph Tech/TUSQ |
| Bridge Pins | None |
| Bridge | Ebony |
| Finish | Silk Flat |
| Color | Natural - NAT |
| Case | MHB-2 Hardcase |
Specifications
Headstock design
A simple design with minimal ornamentation that you won`t get tired of. The wood-inlaid Morris logo and ebony-colored tuning keys give the instrument a luxurious feel.
Wide String Nut
The nut is 45mm which is wider than the standard S series nut. All strings are offset to the 6th string side for solo guitar chord work. This specification is the result of Mr. Minamisawa's accumulated experiences.
Neck Joint
High-precision dovetail joint is handcrafted by skilled builders. This is the joint method that Morris has consistently employed and it is the part that has the greatest impact on the sound, and requires the highest level of technical skill.
Through-type Bridge
A through-type bridge with string holes located behind the bridge plate. This design eliminates the need for a bridge pin, making it easier to replace the strings and more stable tuning.
Rosetta & Cutaway
The wood rosette and wood binding are designed for natural feel. The smooth and beautifully curved Venetian cutaway enhances the playability in the high position required of a solo guitar.

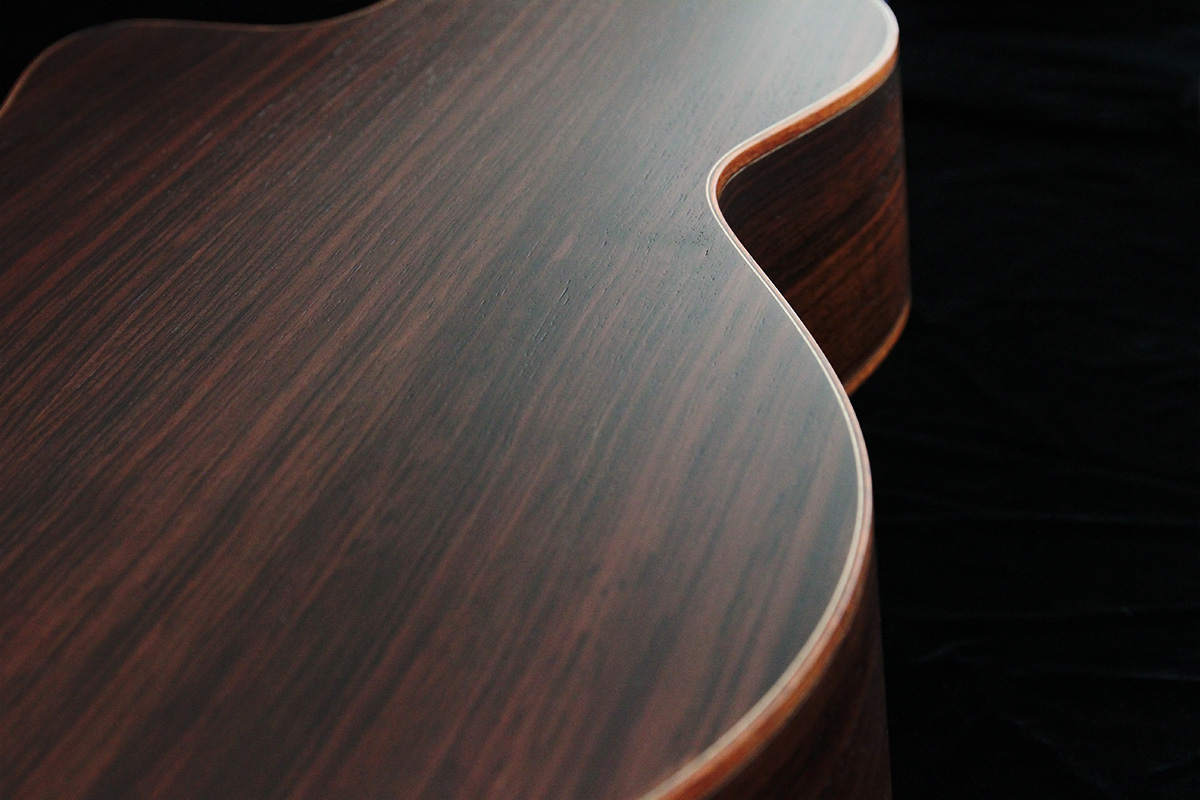

Rosewood Side & Back
The standard round-back design provides an articulate and resilient sound. The silk flat finish, which allows for the thinnest possible coating, provides a delicate and open sound with a pleasant feel when playing.
Dimensions
| A : | Overall length | 1,030mm |
|---|---|---|
| B : | Length of body | 500mm |
| C : | Maximum width across upper bout | 275mm |
| D : | Maximum width across lower bout | 394mm |
| E : | Depth of body, upper bout | 95mm |
| F : | Depth of body, lower bout | 120mm |
| G : | Minimum width between bout | 238mm |
Please note that all measurements are approximate and rounded tu the nearest half-centimatre.
